My Home Lab Upgrade to vSphere 7.0

As you know, VMware has released a few weeks ago vSphere 7.0. Therefore, it was for me an almost mandatory step to upgrade my serious Home Lab from 6.7 U3 to 7.0. In this blog posting I want to describe the necessary steps, and with which problems I had to deal.

My Home Lab consists of a Compute Cluster with 3 HP DL380 G8 Servers (which are only occasionally powered on), and a Management Cluster with 2 old Dell R210 II Servers, which are always up and running. Let’s have a look now on how I updated both clusters.

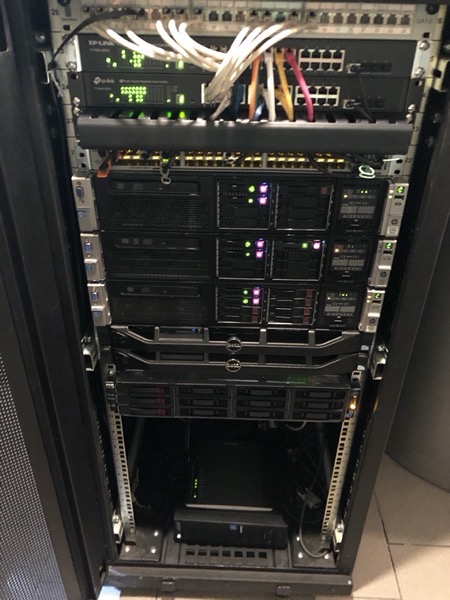

My serious Home Lab Deployment

Compute Cluster

Prior the update of the individual ESXi Hosts, I have upgraded the VCSA Appliance to 7.0. This was a quite straightforward process, which I have already described in a previous blog posting. After the update of the VCSA Appliance was completed successfully, I started with the upgrade of my Compute Cluster.

The Compute Cluster is the beef of my Home Lab and consists of 3 HP DL380 G8 Servers with two 8-Core CPU sockets and 256 GB of RAM in each server. In addition I’m using an Intel XL710 network card in each server, which has four 10GBit (used for vSAN traffic) and two 40GBit ports (used for vMotion traffic).

My vSAN Compute Cluster

From a storage perspective I’m running on VMware vSAN, where I use the Intel Optane 900P device for the Caching Tier, and multiple Samsung 850 Pro SSDs for the Capacity Tier. My vSAN Datastore in the Compute Cluster has currently a raw capacity of 5.5 TB.

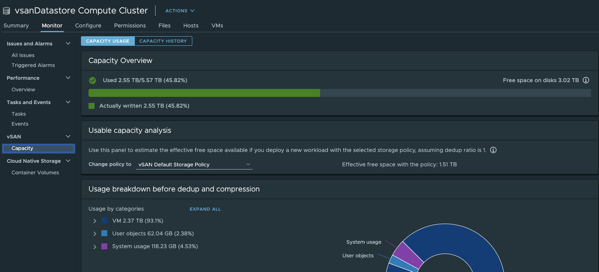

The vSAN Datastore in the Compute Cluster

The upgrade of the 3 ESXi Hosts was a quite straightforward process and was completed in about an hour with all the necessary reboots.

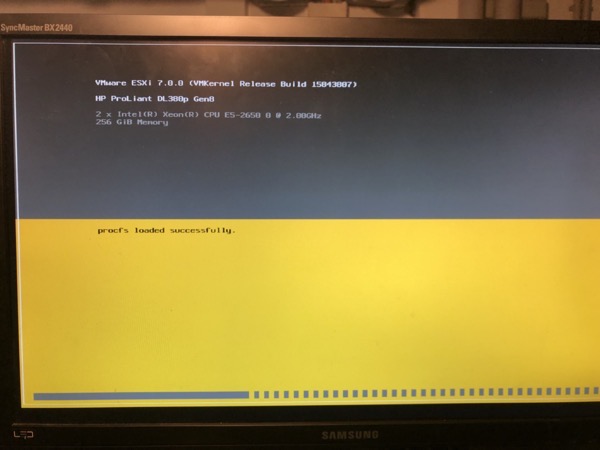

ESXi 7.0 is loading!

After the successful upgrades of the ESXi Hosts, I also upgraded the used Distributed Switch to version 7.0, and also migrated the vSAN Datastore to version 11.0.

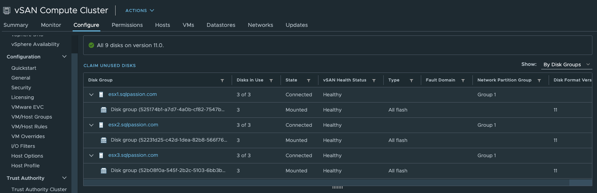

The migrated vSAN Datastore

As a summary, I can say that I had really now problems upgrading the HP DL380 G8 Servers to vSphere 7.0 – everything worked as expected.

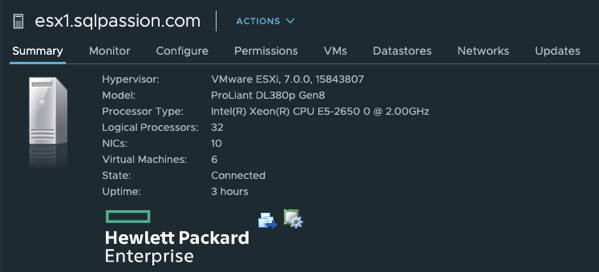

The HP DL380 G8 Servers are up and running with ESXi 7.0

Management Cluster

After the successful upgrade of the Compute Cluster, I also wanted to upgrade my Management Cluster, which consists of 2 Dell R210 II Servers, which provide me a 2-node vSAN Datastore. To provide here a fault-tolerance I run the necessary vSAN Witness in VMware Workstation Pro 15 on a lower-end Windows 10 based machine.

Because the Dell R210 II Servers are already quite old, I was somehow scared about the upgrade to vSphere 7.0, and if everything works as expected. My Management Cluster is not that powerful, and it only hosts 2 Virtual Machines: the VCSA Appliance, and my Domain Controller, which provides me DNS, VPN, and other services. So, it’s a quite important VM to me.

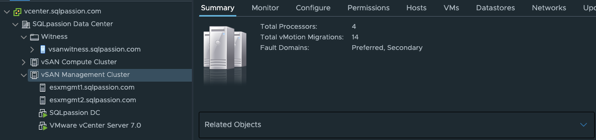

My vSAN based Management Cluster

Interestingly enough, I didn’t had any problems during the upgrade. I just got 2 warnings about the very soon unsupported CPUs (I’m aware of this), and that a PCI device is NOT supported anymore. Unfortunately, this PCI device is the 10 GBit network card that I use in both Dell Servers for the vMotion/vSAN traffic. As you can see in the following 2 pictures, vmnic2 is just gone after the upgrade to 7.0.

The network card is there

The network card is gone

Fortunately, the Management network is still working. And therefore, I’m currently just routing the vMotion/vSAN network traffic through the Management network – with the speed of 1 GBit… If someone of you has an idea how to get my network card working again in 7.0, please leave me a comment .

Besides the network card problem, everything else worked as expected, and even my Dell R210 II Serves are running successfully vSphere 7.0.

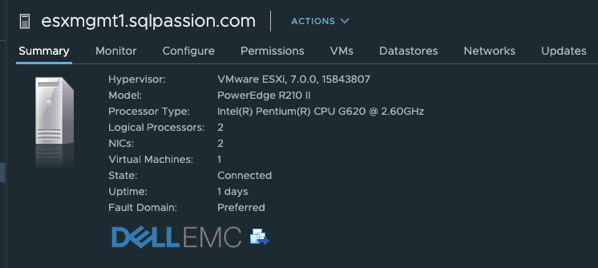

The Dell R210 II Server is running ESXi 7.0

Besides the upgrade of both ESXi Hosts in the Management Cluster, I also had to update the vSAN Witness Appliance, which provides me a fault tolerance in my 2-node vSAN deployment. As I have said previously, I run the Witness Appliance within VMware Workstation Pro 15.

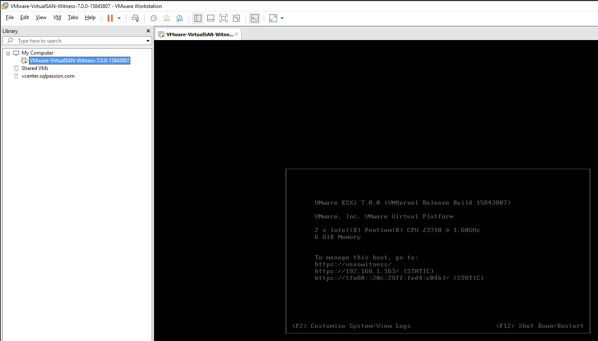

The vSAN Witness Appliance in VMware Workstation Pro 15

After the upgrade of the Witness Appliance, I was also able to migrate the vSAN Datastore to version 11.0.

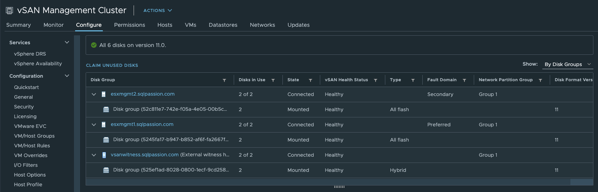

The vSAN Datastore is migrated

Summary

By now my whole Home Lab setup is now successfully migrated to vSphere 7.0. One of my next (big) steps it to deploy NSX-T 3.0 to be able to work and learn about the Kubernetes Integration in vSphere 7.0. Stay tuned…

Thanks for your time,

-Klaus
