Setting a Processor Affinity in SQL Server – the (unwanted) Side-Effects

(Be sure to checkout the FREE SQLpassion Performance Tuning Training Plan - you get a weekly email packed with all the essential knowledge you need to know about performance tuning on SQL Server.)

Today I want to talk about a very important topic in SQL Server – setting a Processor Affinity – and the unwanted side effects that you introduce with this approach. First of all I want to talk a little bit about what a Processor Affinity is, and how it relates to SQL Server.

What is a Processor Affinity

If you run SQL Server with a default configuration, SQL Server will schedule your queries on all available CPU cores. For each CPU core you get a so-called Scheduler, which implements a Query State Machine with the states RUNNING, SUSPENDED, RUNNABLE.

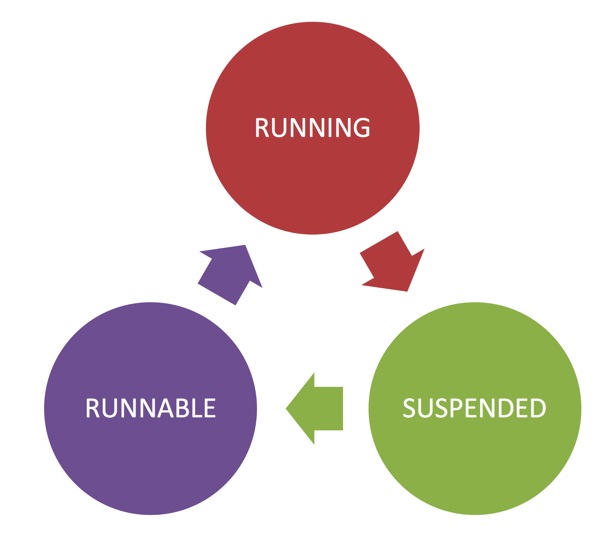

The Query Life Cycle in SQL Server

This Query State Machine is very important, because it is also tracked by the Wait Statistics, which give you a great overview why SQL Server is slow. The most important point is now that a Scheduler is NOT bound to a specific CPU core. Each Scheduler can run on every CPU core. The following picture illustrates this very important concept.

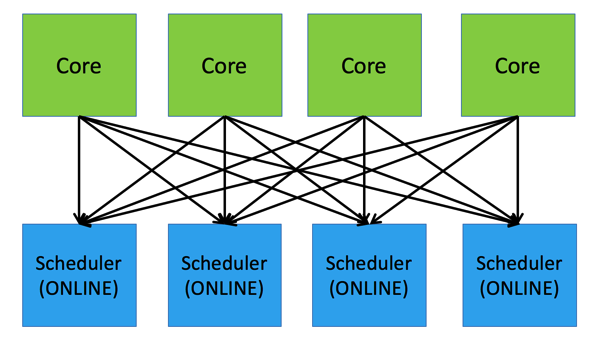

No Processor Affinity by default

Therefore, when an incoming query is assigned to a Scheduler, the Scheduler can be run on each CPU core. There is no 1:1 mapping between a Scheduler and a CPU core. The following picture shows you the CPU utilization during the execution of a Single-Threaded query which is mostly CPU bound.

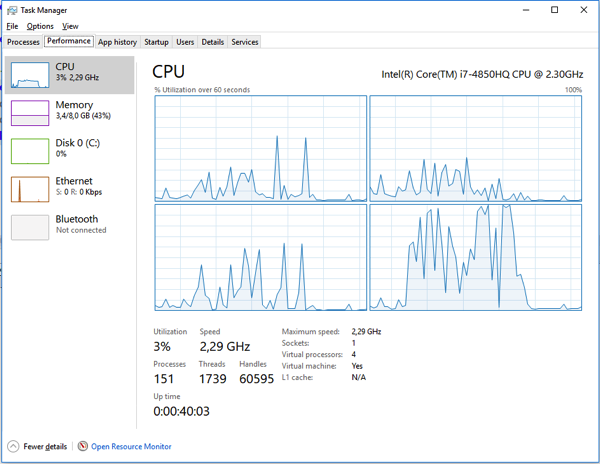

The Scheduler is executed on different CPU cores

As you can see all 4 cores have some CPU utilization, but there is no CPU core that runs continuously at 100%. With the following query you can also check on which CPU cores a specific query (based on the SPID) can be executed.

With the default configuration of SQL Server, and a 4 core system, you will get back the value 15 – which is in binary 1111. The binary value 1111 just means that the Scheduler of this query can run on each core of our 4 core system. With this example you can see quite easily how a Scheduler moves around between the individual CPU cores.

Setting a Processor Affinity

Imagine now you want to restrict which specific CPU cores your SQL Server instance should use. In that case you can reconfigure your SQL Server Instance and tell SQL Server to use only a subset of CPU cores.

Changing the Processor Affinity Settings

In this configuration you are telling SQL Server to use only the CPU cores 2 and 3, and the cores 0 and 1 should not be used by SQL Server. Such a configuration is done very often in combination with multiple SQL Server instances on the same machine. When you perform that configuration, SQL Server will first take the Schedulers 0 and 1 offline.

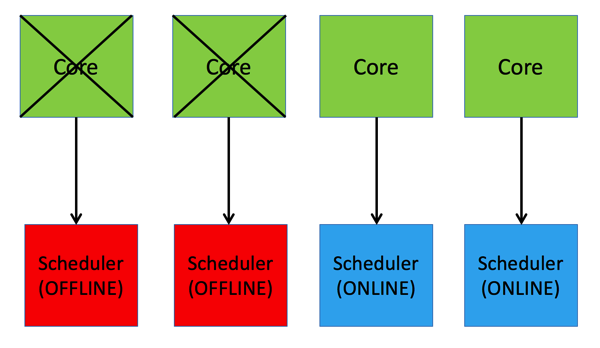

The Schedulers are taken offline

But in addition you are also telling SQL Server that there is now an Affinity between a Scheduler and a CPU core. As you can see from the previous picture, there is now a Scheduler Affinity set:

  • Scheduler 2 can now only run on CPU core 2
  • Scheduler 3 can now only run on CPU core 3
You can now test again this affinity by executing a CPU bound query, and running again the diagnostic query from previous. If you have only enabled CPU core 2 and 3 on a 4 core system, you will get back now the value 4 or 8 – in binary 0100 or 1000.

This means now that a Scheduler is directly bound to a CPU core, and that the Scheduler can’t decide on a CPU core anymore. You can also verify this behaviour through Task Manager. When you are running a query again, you can see now that core 3 or 4 will go up to 100% constantly:


Utilizing one core at 100%

To be honest, this is not really the expected behaviour. The “problem” that I have with this behaviour is that another process can block your SQL Server query! Imagine you are running some application, and that application is performing CPU intensive work on core 2 or 3.

If in that case the core is blocked, your SQL Server query will be also blocked. I’m always demonstrating this behaviour by using a simple .NET Application, which is bound to a specific CPU core (in our case core 2 or 3), and just burns down CPU cycles in a simple endless loop.

The result of this behaviour is that your SQL Server query will just take a longer time to finish its execution. So please be aware of this side effect, when you restrict your SQL Server instance to a subset of the available CPU cores.

Setting a Processor Affinity in the correct way

We know now that taking some CPU cores offline for SQL Server has bad side effects. But there is some help available for you – Trace Flag 8002. When you enable that Trace Flag on your SQL Server instance (and you restart SQL Server), SQL Server will again take your CPU cores offline, but the remaining cores have NO affinity with their Schedulers.
We have again NO Scheduler Affinity!
Therefore, when you now run again a query, the scheduler can itself decide on which core to be executed. You can again verify this behaviour through Task Manager.

Running on all assigned CPU cores

This behaviour is now much better, because the Scheduler can again decide on which remaining cores to execute your query. If you run the diagnostic query from previous you will get now back the value 12 – binary 1100. The Scheduler can use core 2 and 3 for query execution.

Summary

By default SQL Server doesn’t have a Processor Affinity, which is a good thing. But as soon as you restrict SQL Server to use a subset of CPU cores, you will also have internally a Processor Affinity set. And therefore it’s very important that you know these unwanted side effects when you working on your SQL Server instance configuration, and how to avoid it with Trace Flag 8002.

Thanks for your time,

-Klaus
