How to pollute your Plan Cache with parameterized SQL statements

(Be sure to checkout the FREE SQLpassion Performance Tuning Training Plan - you get a weekly email packed with all the essential knowledge you need to know about performance tuning on SQL Server.)

Parameterization of your SQL statements is always a good idea. With parameterized SQL statements you are not able to pollute your Plan Cache – WRONG!!! In this blog posting I want to show you how easy it is to pollute your Plan Cache even with parameterized SQL statements.

ADO.NET – AddWithValue

ADO.NET is the part of the .NET Framework that implements the data access to a relational database like SQL Server – with some serious negative side effects. Don’t get me wrong – ADO.NET is great as long as you use it correctly. But it is very easy to use it incorrectly as you will see. Let’s have a look at the following C# Code that performs an execution of a SQL statement.

We are clever developers, therefore the SQL statement itself is parameterized, and because the ADO.NET Framework is the greatest framework on earth we use the AddWithValue method of the class System.Data.SqlClient.SqlParameterCollection to provide the actual parameter value. I run that SQL statement 100 times in a while loop, and always assign a parameter value with a different length. The column CarrierTrackingNumber is defined as a NVARCHAR(25) in the table Sales.SalesOrderDetail. Therefore we can have up to 25 different parameter data types based on the different string lengths that we supply. Now let’s check the Plan Cache after the executions of our SQL statement.

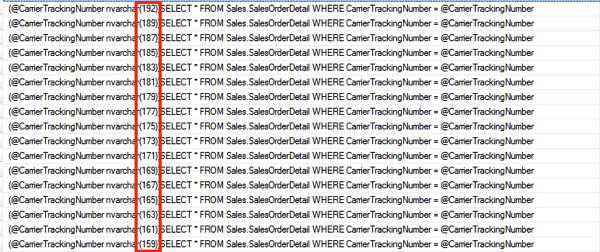

Things are getting really crazy now: we have 100 (!) different execution plans stored in the Plan Cache!

100 different execution plans!

There is one execution plan for every possible parameter data type – even when the underlying data type is a NVARCHAR(25). The method AddWithValue is very, very EVIL: it just derives the actual data type based on the parameter value that you supplied. NEVER EVER USE it!

ADO.NET – SqlDbType.VarChar

Because we now know the side effects of the method AddWithValue of ADO.NET we have learnt from our mistakes – and we don’t use it anymore. Now let’s rewrite our C# application code and define an explicit parameter data type as in the following listing.

As you can see from the code, ADO.NET is now not able to derive the parameter data type anymore, because we have specified the data type as a SqlDbType.VarChar. Let’s again execute this SQL statement 100 times and recheck the Plan Cache:

We sill have 100 different execution plans!

Nothing has really changed. The problem is still the same: we still have 100 (!) identical execution plans in the Plan Cache. The problem is now that ADO.NET just enforces the data type (SqlDbType.VarChar), but not the *length* of the data type. With 100 different lengths you have again 100 different execution plans in the Plan Cache.

If you specify a parameter data type explicitly within your ADO.NET code, you *also* have to specify its length! Now let’s have a look at some revised C# code.

This time I have also specified the length of the data type – in our case 100, and now when we execute the SQL statement 100 times again, we finally end up with just 1 execution in the Plan Cache and it was reused 100 times. And that’s the ultimate goal from a SQL Server perspective.

Now we have 1 parameterized execution plan that can be reused


The moral of the story: ADO.NET is a great data access framework, and provides you with useful functionality (like the method AddWithValue), but from a SQL Server perspective you really have to think about what you are doing. When you work with a parameterized SQL statement, you have to be as explicit as possible: you have to define the actual data type of the parameter value, and also the length to get the data type that you want.

Otherwise ADO.NET submits different permutations of the parameter data type, and SQL Server generates a different execution plan for every possible combination. And your Plan Cache is polluted – even with parameterized SQL statements.

Thanks for your time,



  • Hey Klaus

    Once again thanks for the an very well written article.
    I do have a question, don’t know if you can answer it 😉
    When we dont specify the length of the string but only the data type as being varchar,
    and we loop from 1 – 100 with that parameter, shouldn’t we only be getting 3 different execution plans,
    since the length only goes from 1 (1-9) to 2 (10-99) to 3 (100). Or what am I missing here.

    Thanks & best regard

  • Klaus Aschenbrenner

    Hello Paw,

    Thanks for your comment.
    I have increased the string size in this example from 1 to 100 characters, I haven’t only provided the integer value 😉
    Therefore you have 100 different cached execution plans in the plan cache.



  • james mcfarland

    It seems that only SqlDbType.VarChar would be addressed in this case. Have you studied or encountered any common situations regarding the other SqlDbType values?
